Benchmarks

MNiShed’s daily time loop is the inner loop of every simulation, and during calibration it runs thousands of times. v3.0.0 added a Numba just-in-time (JIT) compiled implementation of that loop, enabled with the jit extra (see Installation).

The figure on this page was produced by running benchmarks/bench_jit.py and benchmarks/plot_jit.py from the repository root. To regenerate it from a fresh benchmark run, in an environment with Numba:

pip install '.[jit]'
python benchmarks/bench_jit.py
python benchmarks/plot_jit.py

bench_jit.py saves a timestamped, commit-stamped results file under benchmarks/results/; plot_jit.py reads the most recent one.

Hardware context for the results shown here:

  • CPU: AMD Ryzen 7 7840U (16 logical cores)

  • RAM: 46.4 GiB

  • OS: Linux 6.17, Ubuntu 24.04

  • Python 3.12.7 · NumPy 2.2.6 · Numba 0.65.1

Absolute timings will differ on other hardware; the relative speedup is broadly representative.

JIT scaling

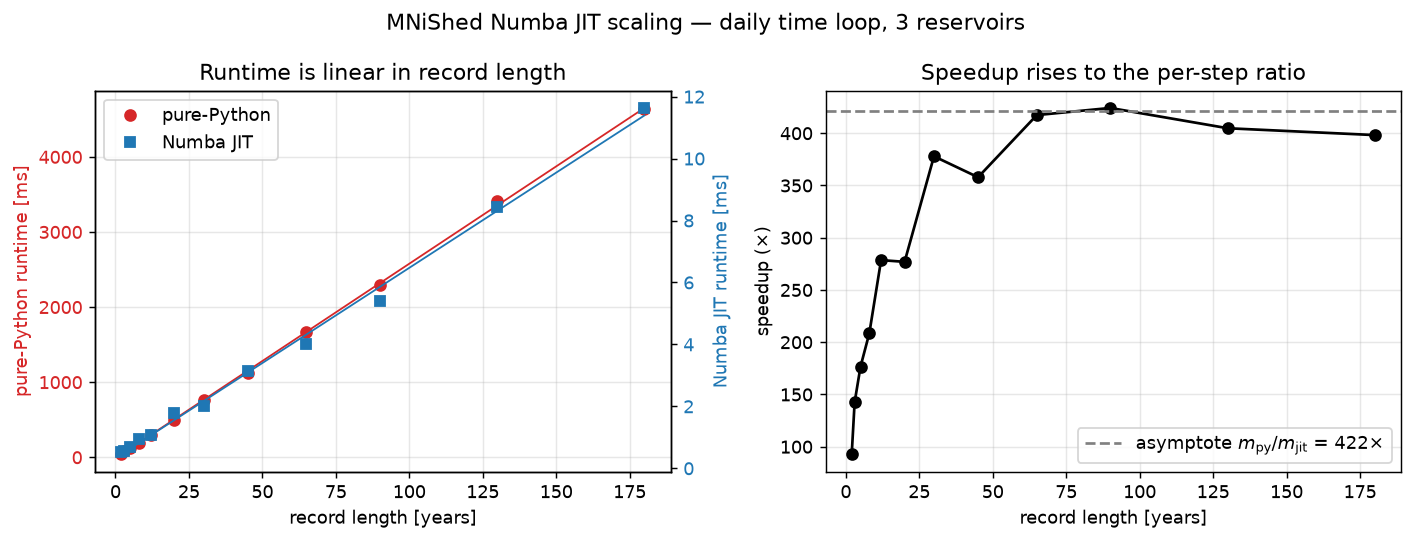

Runtime and speedup of the Numba JIT versus the pure-Python time loop

Left: per-run time of the daily loop versus record length, for the Numba JIT and the same code forced to pure Python (note the two y-axes — they differ by ~300×). Right: the resulting speedup versus record length.

The benchmark times a single forward run() over a sweep of record lengths — a synthetic three-reservoir watershed with daily forcing, varying only the number of time steps — comparing the Numba JIT against the same code forced to pure Python (via mnished.mnished._numba_available).

Both runtimes are linear in the record length \(N\) (number of daily time steps), as the left panel shows: a fixed overhead plus a per-step cost.

  • pure-Python: \(\approx 71\ \mu\text{s}\) per simulated day (\(R^2 = 0.9998\))

  • Numba JIT: \(\approx 0.17\ \mu\text{s}\) per simulated day (\(R^2 = 0.997\))

Because the speedup is the ratio of two straight lines, it is not a single number. At short records the fixed overheads dominate (~90–140× for a 2–3-year run), and as the record lengthens the speedup rises toward the asymptotic per-step ratio \(m_{\mathrm{py}}/m_{\mathrm{jit}} \approx 400\times\) (right panel). For the multi-decade to century-long daily records typical of water-balance and calibration studies, the JIT is roughly 300–400× faster than the pure-Python loop.

The JIT carries a one-time compilation cost of a few seconds on the first run; Numba caches the compiled function (cache=True), so subsequent runs and processes reuse it with no further compile cost.

When the JIT is used. The JIT path runs automatically when Numba is installed, for the common configuration. It falls back to the pure-Python loop — with identical results — for the two configurations it does not yet cover: the probability-distributed (PDM) saturation-excess model and the storage-dependent et_water_stress ET module. JIT↔pure-Python equivalence is verified by the test suite.
